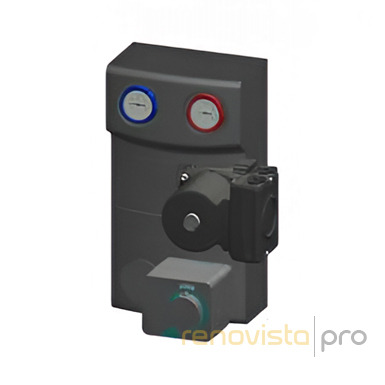

REHAU CG M9 pump group (13217751001) 1pc.
- Product Code: 13217751001
- Availability: In Stock
- Weight: 5.410 kg
-
1,302.14€ (Ex Tax)
Price without discount: 1,627.68€
Delivery by DHL. Delivery is available across mainland Spain, as well as the Balearic and Canary Islands, Portugal and Andorra. International shipping.
| RAUTHERM System | |
| Code | 13217751001 |
| EAN | 4068767001766 |
| Series | RAUTHERM |
| Type | Pump group for heating/cooling systems |
| Model | CG M9 |
| Application | Pre-assembled Rehau pump group for distributing coolant in zone heating/cooling systems |
| Height, H | 330mm |
| Width, B | 180mm |
| Max. flow rate | * 3900 l/h |
| Max. operating pressure | 10.0 bar |
| Circulation pump | Grundfos UPM10M HYBRID 25-95 |
| Set | High-efficiency circulator, 3-way mixing valve with actuator, 2 ball shut-off valves with thermometer and non-return device, wall mounting kit, thermal insulation |
| Weight | 5.410kg - 1pc. |
| Packaging | 1pc. Capacity per pallet (800 x 1200): 30pcs. |
| Producer | Rehau |
| Comment | * The data in the table are approximate, for the correct selection of equipment, refer to the technical information Rehau |
REHAU pre-assembled pressure and mixing units are systems for managing, distributing, and regulating heat transfer fluid in zoned radiant heating and cooling systems. Designed according to a modular installation principle, in combination with distribution manifolds and hydraulic separators, they can meet diverse system requirements.
CGM Compact Group
Distribution unit with mixing system with three-way rotary valve and 24V AC actuator with 0-10V signal. 230V power supply.
