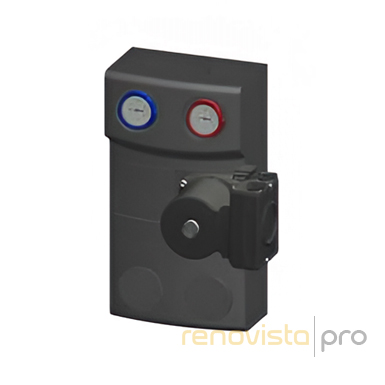

REHAU CG 9 pump group (13217721001) 1pc.
- Product Code: 13217721001
- Availability: In Stock
- Weight: 4.820 kg
-
980.86€ (Ex Tax)
Price without discount: 1,226.08€
Delivery by DHL. Delivery is available across mainland Spain, as well as the Balearic and Canary Islands, Portugal and Andorra. International shipping.
| RAUTHERM System | |
| Code | 13217721001 |
| EAN | 4068767001636 |
| Series | RAUTHERM |
| Type | Pump group for heating/cooling systems |
| Model | CG 9 |
| Application | Pre-assembled Rehau pump group for distributing coolant in zone heating/cooling systems |
| Height, H | 330mm |
| Width, B | 180mm |
| Max. flow rate | * 3800 l/h |
| Max. operating pressure | 10.0 bar |
| Circulation pump | Grundfos UPM10M HYBRID 25-95 |
| Set | Highly efficient circulation pump, 2 ball valves with a thermometer and a check device, a check valve, a wall mounting kit, thermal insulation |
| Weight | 4.820kg - 1pc. |
| Packaging | 1pc. Capacity per pallet (800 x 1200): 25pcs. |
| Producer | Rehau |
| Comment | * The data in the table are approximate, for the correct selection of equipment, refer to the technical information Rehau |
REHAU pre-assembled pressure and mixing units are systems for managing, distributing, and regulating heat transfer fluid in zoned radiant heating and cooling systems. Designed according to a modular installation principle, in combination with distribution manifolds and hydraulic separators, they can meet diverse system requirements.
CG Compact Group
Distribution units for supplying heating water to a mixed heating and/or cooling circuit.
