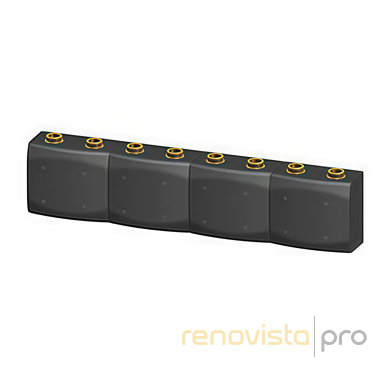

![Distribution manifold for 4 groups [G1] [158x720x95]mm (13735501001)](https://renovista.pro/image/cache/catalog/superficies-radiantes-rautherm/colector-distribucion-4g-rehau-385x385-385x385.jpg "Distribution manifold for 4 groups [G1] [158x720x95]mm (13735501001)")
Distribution manifold for 4 groups [G1] [158x720x95]mm (13735501001) 1pc.
- Product Code: 13735501001
- Availability: In Stock
- Weight: 6.840 kg
-
805.46€ (Ex Tax)
Price without discount: 1,006.82€
Delivery by DHL. Delivery is available across mainland Spain, as well as the Balearic and Canary Islands, Portugal and Andorra. International shipping.
| RAUTHERM System | |
| Code | 13735501001 |
| Previous code | 13297641001 |
| EAN | 4068767001780 |
| Series | RAUTHERM |
| Type | Distribution manifold |
| Model | For connecting 4 pump-mixing group |
| Application | Designed for distributing heat from the main pipeline to individual points. The collector can also be installed on a cold water supply |
| Height, H | 158mm |
| Width, B | 720mm |
| Depth, T | 95mm |
| Primary connection | F1” |
| Secondary connection | M1” |
| Pump groups | 4 |
| Set | Ready for installation. EPP insulation case |
| Weight | 6.840kg - 1pc. |
| Packaging | 1pc. Capacity per pallet (800 x 1200): 42pcs. |
| Compatibility | REHAU pump groups |
| Producer | Rehau |
The manifold for central heating installations is used in heating installations to distribute the heat transfer fluid to several distribution or regulation groups with a single heat source.
The manifold includes:
- Hydraulic separator
- Adjustable bypass valve
- Manifold
- EPP thermal insulation
